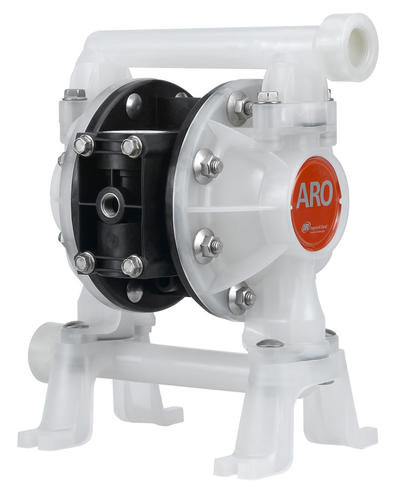

Features
- Designed to meet your OEM application needs!!
- Install directly onto your 3/4" application, saving you a fitting and a possible leak point!!
- Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and polypropylene casing materials
- Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented "Unbalanced" air valve ensures no-stall operation
- Versatility -Compact design enables usage in limited space and other versatile locations
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Easier service through modular design
Accessories
- 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5' section of hose
- 637438 Ported Exhaust Kit
- 93110 Air Motor Muffler
- 76763 Wall Mount Bracket
- 637428 Air Section Service Kit
- 637427-XX Fluid Section Service Kit
Diaphragm Materials
- Santoprene
- Hytrel
- PTFE (PTFE) w/ Santoprene backer
Pump Casing Materials
- Polypropylene
- Aluminum
Ratio: 1:1

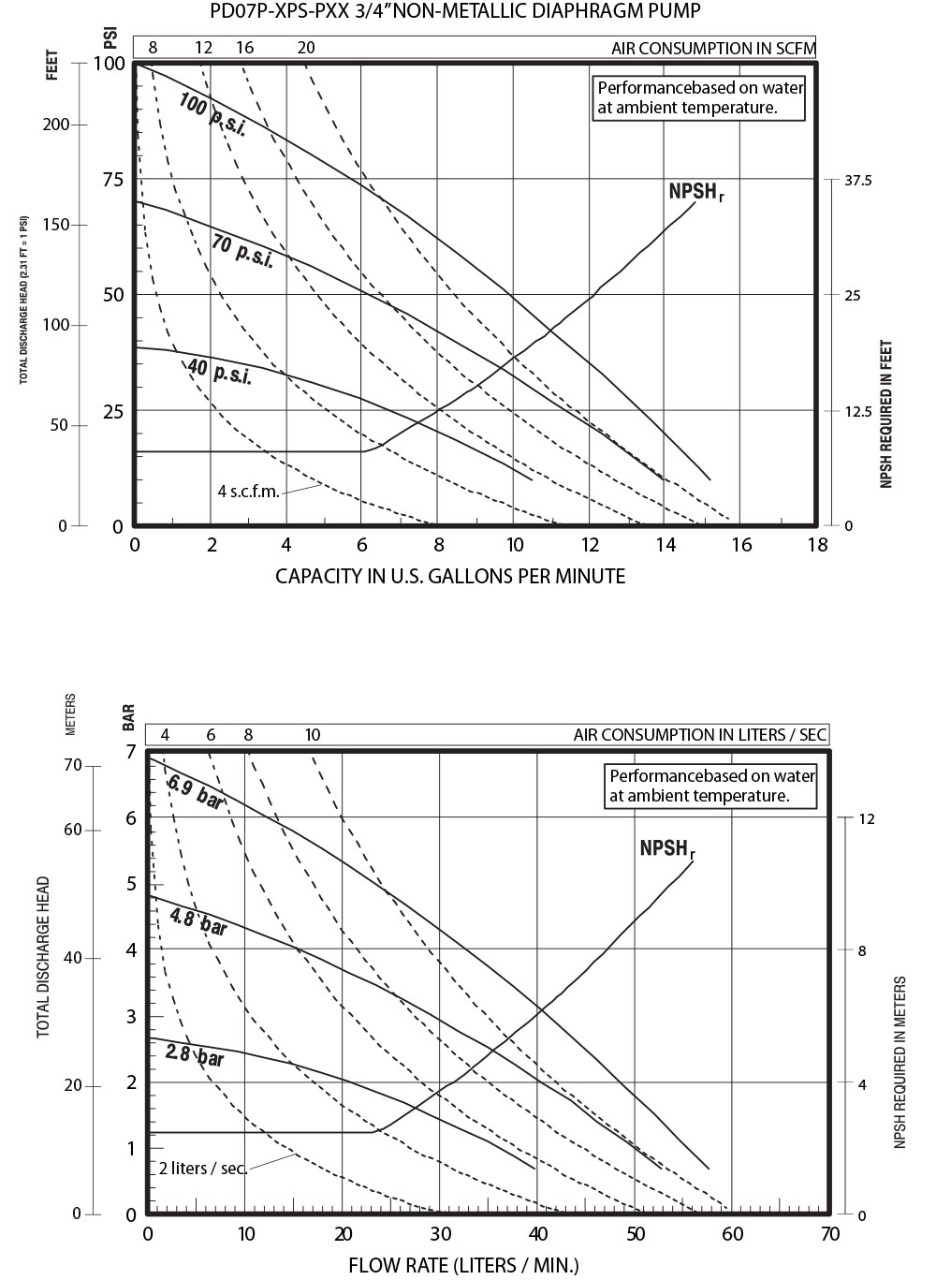

Maximum Flow: 14.8 g.p.m. (56 l.p.m.)
Displacement per cycle: 0.032 Gallons (0.12 Liters)
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet/Outlet:
1/2 - 14 N.P.T.F. - 1
Rp 1/2 (1/2 -14 BSP, parallel)
Max. operating pressure: 100 psi (6.9 bar)
Suspended solids max. dia.: 3/32” (2.4 mm)
Weight: lbs (kg) 5.61 (2.54)
Maximum dry suction lift: ft (m) 15.0 (4.5)
Sound Level: 70 PSI 60 Cycles/Min 75.0 db(A)
Muffler: Integral, Included
.jpg)
ENGINEERING OPERATION & MAINTENANCE MANUAL
