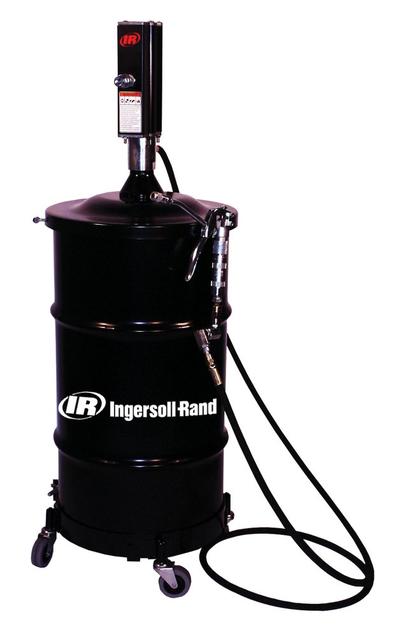

LM Series 2" 50:1

Features

  • Unmatched performance for pumping grease!!
  • 2” Diameter air motors provide a 50:1 pressure ratio for transporting grease within a service garage or maintenance environment!!
  • LP packages offer convenient equipment available for immediate assembly and use

Accessories

  • 636111 Grease Control Handle
  • 94420 Drum Cover
  • 94421 Drum Cover
  • 624201-10 Hose
  • 640095-2-B Follower Plate
  • 640165 Follower Plate
  • 94334 Handle
  • 76493 Adapter
  • 636077 Z-Swivel

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.



Specifications

LOWER PUMP MATERIAL CARBON STEEL
Air Motor Diameter 2”
Air Inlet Pressure Range psi (bar) 0-150 (0-10.3)
Fluid Pressure Range psi (bar) 0-7500 (0-517.2)
Stroke Length 3”
Max. Recommended Cycles/Minute 80.0
Flow Rate  lbs/min (kg/min) 2 (1)
Cycles Per Gallon (Liter) 12.3 (3.2)
Air Inlet Size 1/4” (F)
Fluid Outlet Size 3/8” (F)
Fluid Inlet Size  Immersed
Noise Level @ 60 psi – 40 cpm 85 db(A)

Available Models

PUMP MODEL   CONTAINER SIZE GAL (L)
LM2250E-21-B (-22 = BSP thread) 35 (15.8)
LM2250E-31-B (-32 = BSP thread) 120 (54.4)
LM2250E-41-B (-42 = BSP thread) 400 (181.4)
LM2250E-61-B (-61 = BSP thread) 60 (27.2)
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: LM Series 2" 50:1
