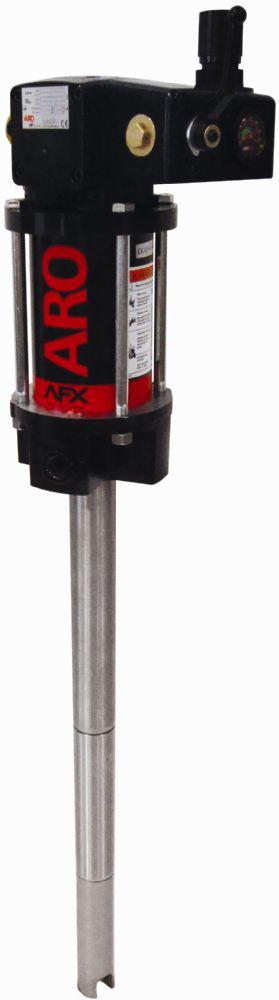

AF0450

Features

  • Heavy service grease pumps - 50:1 and 100:1 ratios

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

Pump Specifications
Ratio 50:1
Stroke 4” (40.2 cm)
Material Outlet 1/2” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 150 (0 - 10)
Fluid Pressure Range psi (bar) 0 - 7500 (0 - 517)
Max Delivery/Minute @ 75 cycles 5.2 lbs (2.35 kg)
Noise Level @ 60 psi dBA 81.8
Material Inlet Immersed
Pump Model** Plunger Material Upper Packings Lower Packings Lower Pump Model Packaging Service Kit
Container Suitability - 16 GAL / 120 LB Drum

AF0450L43PKL1

Carbon Steel

Polyurethane

Glass Filled PTFE

-

65130



Container Suitability - 55 GAL / 400 LB Drum

AF0450L53PKL1

Carbon Steel

Polyurethane

Glass Filled PTFE

-

65130

**Add “-1” to Model No. for Ball Valve Regulator



ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: AF0450
