WARNING: These 100:1 pumps deliver pressures up to 10,000 psi and can only be used in permanently installed systems where the pump is connected directly to piping with the proper rating for the application.
| Pump Specifications | |
|---|---|
| Ratio | 100:1 |
| Stroke | 4” (40.2 cm) |
| Material Outlet | 1/2” NPT(F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 0 - 100 (0 - 6.9) |
| Fluid Pressure Range psi (bar) | 0 - 10,000 (0 - 690)) |
| Max Delivery/Minute @ 75 cycles | 5.2 lbs (2.35 kg) |
| Noise Level @ 60 psi dBA | 84.7 |
| Material Inlet | Immersed |

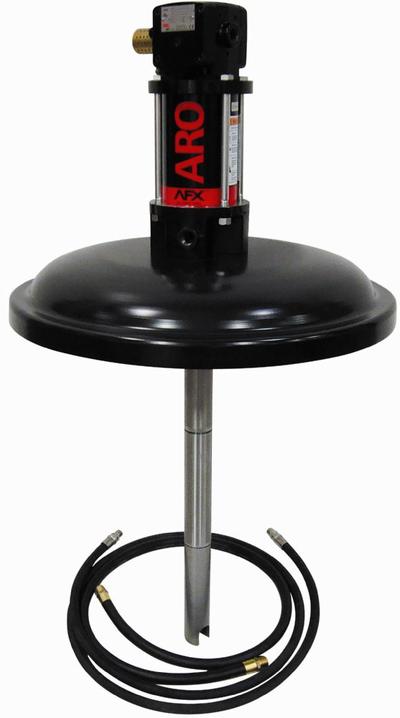

| Pump Model** | Plunger Material | Upper Packings | Lower Packings | Lower Pump Model | Packaging Service Kit |
|---|---|---|---|---|---|
| Container Suitability - 16 GAL / 120 LB Drum | |||||
|
AF0450L43PKL1 |
Carbon Steel |
Polyurethane |
Glass Filled PTFE |
- |
65130
|
| Container Suitability - 55 GAL / 400 LB Drum | |||||
|
AF0450L53PKL1 |
Carbon Steel |
Polyurethane |
Glass Filled PTFE |
- |
65130 |
**Add “-1” to Model No. for Ball Valve Regulator
WARNING: These 100:1 pumps deliver pressures up to 10,000 psi and can only be used in permanently installed systems where the pump is connected directly to piping with the proper rating for the application.
ENGINEERING OPERATION & MAINTENANCE MANUAL
