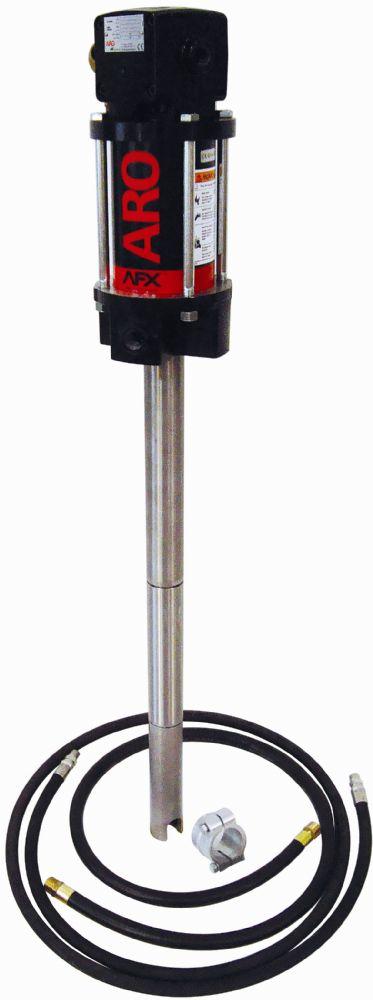

AF0450 Series

50:1 Ratio
4 1/4’‘ Air Motor

Pump Specifications
Ratio 50:1
Stroke 4” (40.2 cm)
Material Outlet 1/2” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 150 (0 - 10)
Fluid Pressure Range psi (bar) 0 - 7500 (0 - 517)
Max Delivery/Minute @ 75 cycles 5.2 lbs (2.35 kg)
Noise Level @ 60 psi dBA 81.8
Material Inlet Immersed
Pump Model** Plunger Material Upper Packings Lower Packings Lower Pump Model Packaging Service Kit
Container Suitability - 16 GAL / 120 LB Drum

AF0450L43PKL1

Carbon Steel

Polyurethane

Glass Filled PTFE

-

65130



Container Suitability - 55 GAL / 400 LB Drum

AF0450L53PKL1

Carbon Steel

Polyurethane

Glass Filled PTFE

-

65130

**Add “-1” to Model No. for Ball Valve Regulator
