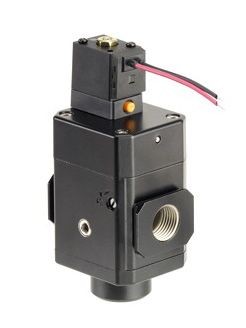

Soft Start Valve

Features

  • Prevents air surge on machine start-up by allowing pressure to build gradually
  • Modular construction
  • Utilize modular clamp spacers to connect to other components
  • Threaded and be connected directly to piping
  • 2 year warranty

Technical Data

  • Operating Pressure: 44-130 psi (3-9 bar)
  • Gauge Port: 1/8'' NPT
  • Manual Override: Locking
  • Voltage Allowance: -15% - 10%
  • Consumption (AC) Inrush: 5.6VA (50 Hz), 5.0VA (60 Hz)
  • Consumption (AC) Holding: 3.3VA (50 Hz), 2.3VA (60 Hz)
  • Consumption (DC): 1.8W / 2W (with lamp)
  • Connection: Din
  • Effective Orifice Size: P->A = .098 sq. in. (63 mm2) A->R = .068 sq. in. (44 mm2)
Product Name: Soft Start Valve
