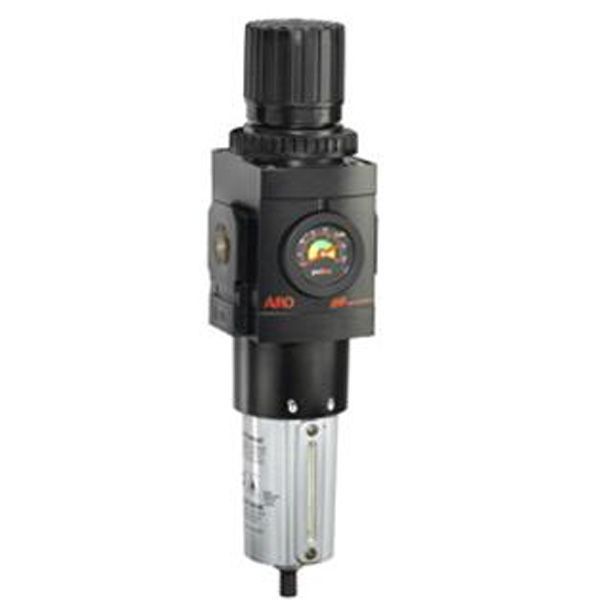

3000 Series Filter-Regulator "Piggyback"

Features

  • Industry leading flow rates
  • Low leak rates
  • All modular design
  • Full line accessory set
  • Locking bowls for safety
  • Bright, flush mount gauge with settable fan feature
  • 5 micron standard filter
  • 2 year warranty

Materials of Construction

  • Polycarbonate Bowl: Polycarbonate
  • Polycarbonate Bowl Guard: Nylon
  • Metal Bowl: Aluminum
  • Metal Bowl Sight Glass: Nylon
  • Filter Body: Aluminum
  • Manual Drain: Steel & Nitrile
  • Auto Drain: Acetal
  • Standard Filter: Polyethylene
  • Coalescing Filter: Hepa paper & Felt
  • Seals: Nitrile
  • Filter Baffle: Acetal
  • Diaphragm: Nitrile & Acetal
  • Regulator Body: Aluminum
  • Regulator Valve: Brass & Nitrile
  • Regulator Spring: Steel
  • Gauge Cover: Nylon & Polycarbonate
  • Regulator Knob: Acetal
  • O-rings: Nitrile

Spare Parts

  • 104445- 5 Micron Element
  • 104446- 40 Micron Element
  • 104447- .3 Micron Element
  • 104450- Metal Bowl w/ Sight Glass, Manual
  • 104451- Metal Bowl w/ Sight Glass, Auto
  • 104452- Filter Bowl Service Kit
  • 104461- Coalescing Filter Bowl, Manual Drain
  • 104462- Coalescing Filter Bowl, Auto Drain
  • 104453- Regulator Service Kit (Relieving)
  • 104454- Regulator Service Kit (Non-relieving)
  • 104455- Tamper Kit
  • 104534- 0-30 psi Spring
  • 104456- 0-60 psi Spring
  • 104457- 0-140 psi Spring
  • 104334- 0-140 psi Gauge (flush-mount)
  • 104458- 10-200 psi Spring

Accessories

  • 104393-5: 3/4'' NPT Lock-out Valve
  • 104393-6: 1'' NPT Lock-out Valve
  • 104393-E: 3/4'' BSP Lock-out Valve
  • 104393-F: 1'' BSP Lock-out Valve
  • 104397: Modular Clamp Spacer Kit
  • 104476-5: 3/4'' NPT Modular Threaded Pipe Adapter
  • 104476-6: 1'' NPT Modular Threaded Pipe Adapter
  • 104476-E: 3/4'' BSP Modular Threaded Pipe Adapter
  • 104476-F: 1'' BSP Modular Threaded Pipe Adapter
  • 104402: T-Type Wall Bracket
  • 104406- L-Type Wall Bracket
  • 104410: C-Type Wall Bracket
  • 104419: Panel Nut
  • 104469: Gauge Port Block
Product Name: 3000 Series Filter-Regulator "Piggyback"
