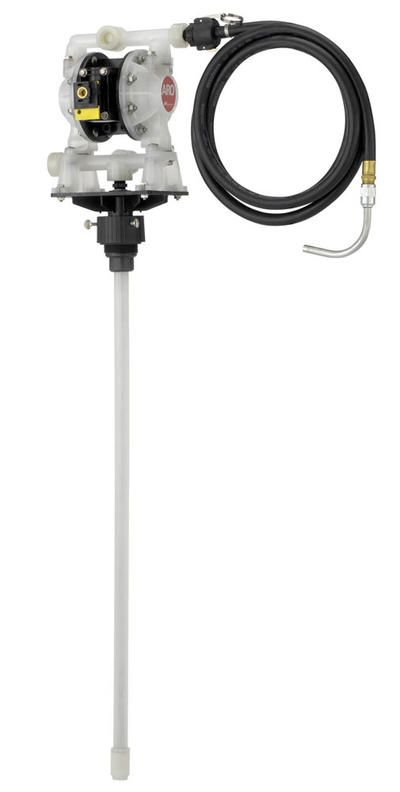

Drum Package -- Dispense DAB05-XXXX-X-X

Features

  • Complete dispense drum pump will move your chemical from any 55-gallon drum to it's finishing application location!!
  • ARO Drum Pumps are available in Aluminum, Stainless Steel or Polypropylene body materials
  • Stall-Free Operation - ARO Diaphragm Drum Pumps feature a patented "Unbalanced" air valve design that avoids stall-out, even under low air-inlet pressures.
  • Bolted Construction - Unlike traditional band-clamp style pumps, ARO Diaphragm Drum Pumps utilize bolted fasteners for leak-tight integrity.
  • Factory-Matched - ARO Drum Pump Package components (adapters, siphon tubes, etc.) contain pre-specified, matching materials of construction for complete fluid compatibility.

Diaphragm Materials

  • PTFE (PTFE) w/ Santoprene backer
  • Hytrel
  • Polyurethane
  • Santoprene

Pump Casing Materials

  • Aluminum
  • Stainless Steel
  • Polypropylene

Package

  • Basic Pump Plus:
  • Foot Valve
  • Hose
  • Dispensing Nozzle

Ratio: 1:1

Maximum Flow: 11 g.p.m. (41.6 l.p.m.)

Displacement per cycle: 0.039 Gallons (0.15 Liters)

Air Inlet:  (Female) 1/4 - 18 NPT/F

Fluid Inlet: Siphon tube for 55-gal Drum

Fluid Outlet: 1/2 - 14 NPT/F

Max. operating pressure: 100 psi (6.9 bar)

Suspended solids max. dia.: 3/32” (2.4 mm)

Weight:  lbs (kg)
22 (10) Polypropylene, basic package
26 (11.8) Aluminum, basic package
36 (16.3) Stainless, basic package

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: Drum Package -- Dispense DAB05-XXXX-X-X
