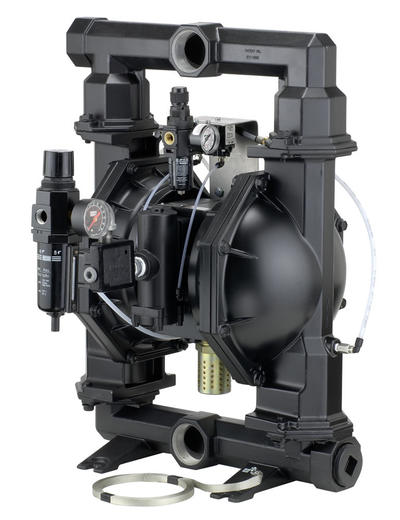

2" Ported Powder Transfer PP20A-XXX-XXX

Transfer and handle your dry process powders faster, cleaner and at a fraction of the cost associated with installed “systems.” Consistent trouble-free transfer of powders up to 45-lbs. per cubic foot (721 kgs. per cubic meter) dry-weight, such as carbon black, expanded mica, silicones, acrylic resins, 3D printing powders and pharmaceuticals

Features

  • Transfer and handle your dry process powders quicker, cleaner and at a fraction of the cost associated with installed "systems"
  • Replaces Manual Powder Processes
  • Reduce Airborne Contamination - With direct transfer from the powder container to your recipe
  • Unique Patented Air-Induction System - Avoids the possibility of powder pack-out
  • Economical and Simple - Unlike large, complex systems
  • Portable - Can be moved from site to site
  • Advanced Air-Induction Technology - 4-Way air efficiency valve, delay timer, pump major air valve, air induction valve, main air control valve and air motor muffler
  • NPT, BSP and Tri-Clamp material connections

Accessories

  • 66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67183-1 Suction Probe: contains all necessary pump attachment hardware and 10' of groundable hose to be used with both 2" and 3" ported powder pumps
  • 637421 Air Section Service Kit
  • 637309-XX Fluid Section Service Kit

Diaphragm Materials

  • Santoprene
  • Medical Grade Santoprene

Pump Casing Materials

  • Aluminum
  • Stainless Steel

Port: 1”, 2” and 3”

Material: Aluminum and Stainless Steel

Max. operating pressure: psi (bar) 50 (3.4)

Suspended solids maximum: dia. in. (mm)
1/8” (3.3) PP10A Models,
1/4” (6.4) PP20A Models
3/8” (9.5) PP30A Models

Weight: lbs (kg)
PP10A-XAX-AAA 33.3 (15.1)
PP10A-XSX-AAA 50.9 (23.1)
PP20A-XAX-AAA 99.4 (45.1)
PP20A-XSX-AAA 157.8 (71.6)
PP30A-XAX-AAA 137.5 (62.4)
PP30A-XSX-AAA 236.8 (107.4)
