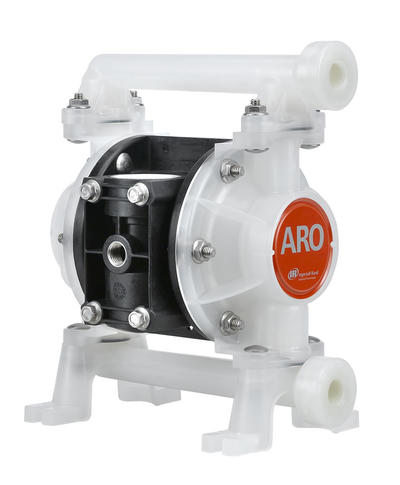

3/8" Non-Metallic PD03P-XXS-XXX

Features

  • A favorite of OEM's around the world!!
  • Big delivery in a small package!!
  • Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and your choice of PVDF, Polypropylene, or Groundable Acetal casing materials
  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - ARO's patented "Unbalanced" air valve ensures no-stall operation
  • Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
  • Environmentally Sound - Bolted construction for leak-free fluid handling
  • Serviceability - Ease of service through modular design

Accessories

  • 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67388 Wall Mount Bracket
  • 66975 Cycle Counter Kit
  • 637442-X Dual Inlet / Outlet Kits
  • 67165-X Cycle Actuation Kit
  • 67386 Cycle Sensor Kit
  • 637428 Air Section Service Kit
  • 637429-XX Fluid Section Service Kit

Diaphragm Materials

  • Santoprene
  • Hytrel
  • PTFE (PTFE) w/ Santoprene backer
  • Viton

Pump Casing Materials

  • Polypropylene
  • PVDF (Kynar)
  • Groundable Acetal

Ratio: 1:1

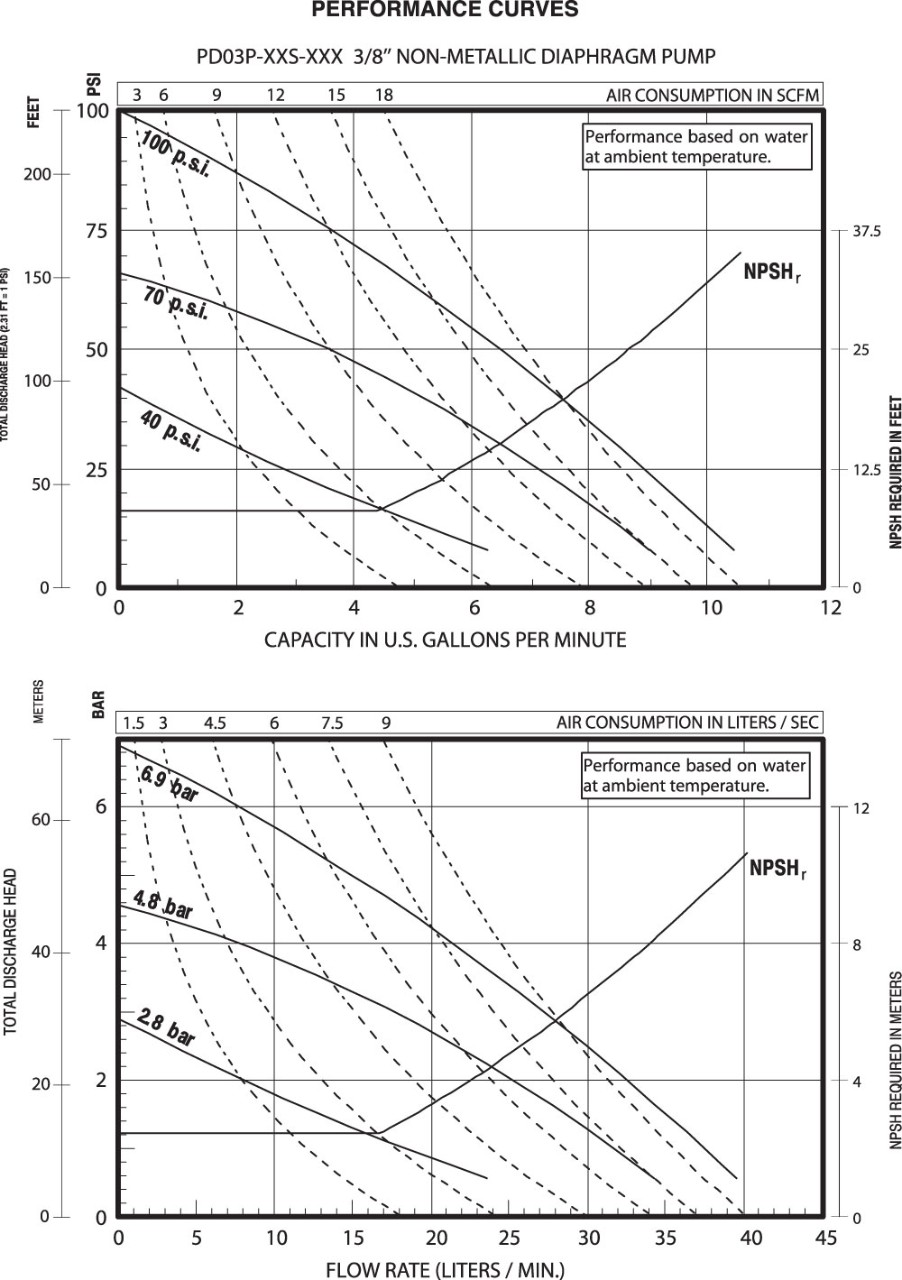

Maximum Flow: 10.6 g.p.m. (40.1 l.p.m.)   8.7 (32.9) Flex check

Displacement per cycle
0.022 Gallons (0.083-Liters)
0.018 (0.068) Flex check

Air Inlet:  (Female) 1/4 - 18 P.T.F. SAE Short

Fluid Inlet/Outlet:
3/8 - 18 N.P.T.F. - 1
Rp 3/8 (3/8 - 19 BSP, parallel)

Max. operating pressure: 100 psi (6.9-bar)

Suspended solids max. dia.: 1/16-in. (1.6-mm) Flex check (Fibers)

Weight:  lbs (kg)
PD03P-XDS-XXX 4.2 (1.9)
PD03P-XES-XXX 4.3 (1.9)
PD03P-XKS-XXX 4.5 (2.0)
PD03P-XLS-XXX 4.6 (2.1)
PD03P-XPS-XXX 3.4 (1.6)
PD03P-XRS-XXX 3.5 (1.6)

Maximum dry suction lift:   ft (m) 9.25 (2.8)

Sound Level: 70 PSI    60 Cycles/Min    72.7 db(A)

Muffler: Integral, Included

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: 3/8" Non-Metallic PD03P-XXS-XXX
