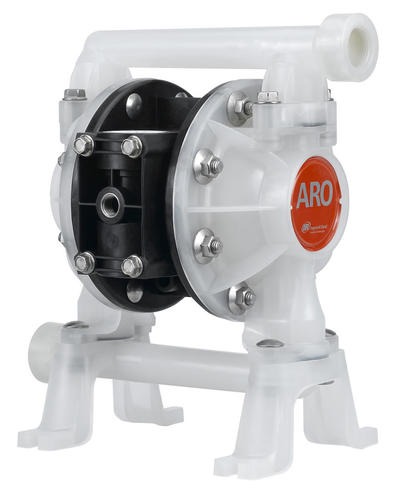

3/4" Non-Metallic PD07P-XXS-XXX

Part of our Compact Series of pumps, our 3/4” pumps feature big performance in a small package. They offer flow rates up to 14.8 GPM (56 LPM) and a wide range of material and porting configurations.

Available with Long-life PTFE diaphragms.

Features

Designed to meet your OEM application needs.

Install directly onto your 3/4" application, saving you a fitting and a possible leak point.

Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and polypropylene casing materials

Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation

Versatility - Compact design enables usage in limited space and other versatile locations

Environmentally Sound - Bolted construction for leak-free fluid handling

Serviceability - Easier service through modular design

Accessories

  • 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5' section of hose
  • 637438 Ported Exhaust Kit
  • 93110 Air Motor Muffler
  • 76763 Wall Mount Bracket
  • 637428 Air Section Service Kit
  • 637427-XX Fluid Section Service Kit

Pump Casing Materials

  • Polypropylene

Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • PTFE w/ Santoprene backer

Ratio: 1:1

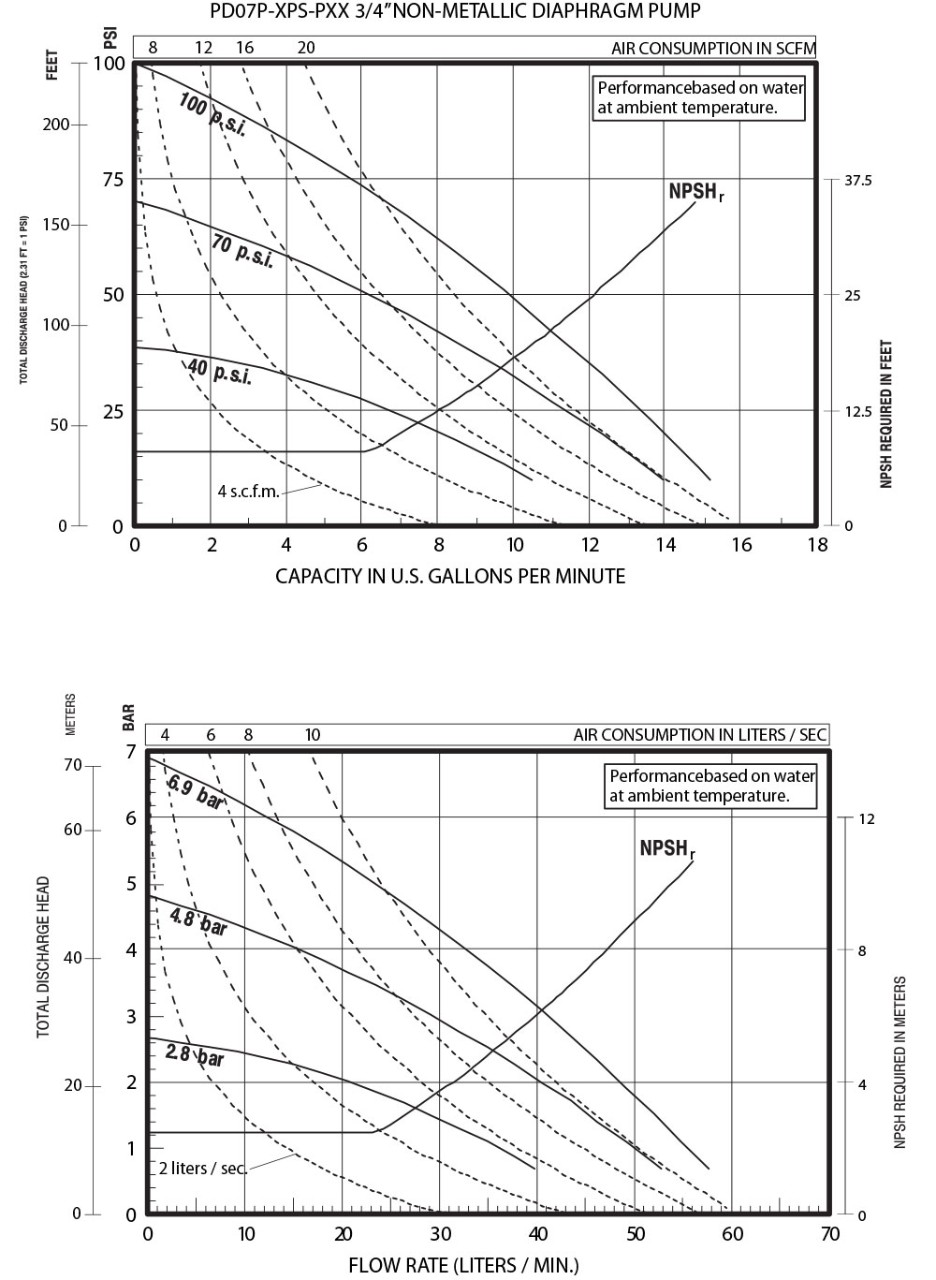

Maximum Flow: 14.8 g.p.m. (56 l.p.m.)

Displacement per cycle: 0.032 Gallons (0.12 Liters)

Air Inlet:  (Female) 1/4 - 18 P.T.F. SAE Short

Fluid Inlet/Outlet:
1/2 - 14 N.P.T.F. - 1
Rp 1/2 (1/2 -14 BSP, parallel)

Max. operating pressure: 100 psi (6.9 bar)

Suspended solids max. dia.: 3/32” (2.4 mm)

Weight:  lbs (kg) 5.61 (2.54)

Maximum dry suction lift: ft (m)  15.0 (4.5)

Sound Level: 70 PSI    60 Cycles/Min   75.0 db(A)

Muffler:     Integral, Included

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: 3/4" Non-Metallic PD07P-XXS-XXX
