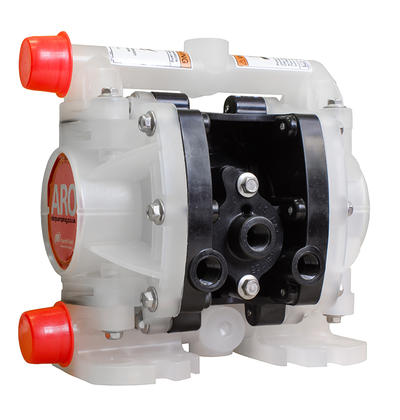

1/4" Non-Metallic Dosing Pump PX01X-XXX-XXX

Part of our Compact Series of pumps, our 1/4” pumps feature big performance in a compact package. They feature flow rates up to 5.3 GPM (20 LPM), a wide range of material options, multi-port versions and the unique hybrid male/female threaded fluid connections.

Features

  • Compact Design
  • 360º Mounting Versatility when using optional flex checks
  • Ideal for OEM Applications
  • Creates a 31-feet of suction lift

Pump Casing Materials

  • Polypropylene
  • PVDF (Kynar)
  • Groundable Acetal

Diaphragm Materials

  • Santoprene
  • Nitrile
  • PTFE
  • Hytrel

Ratio: 1:1

Maximum Flow:  5.3 g.p.m. (20) l.p.m.

Displacement per cycle: 0.019 Gallons (0.072 Liters)

Air Inlet (Female): 1/4 - 18 PTF SAE Short

Fluid Inlet/Outlet Hybrid:
Internal Thread 1/4”NPTF/BSPT
External Thread 3/4” - 14 NPTF/BSPT

Max. operating pressure psi (bar): 125 (8.6)

Suspended solids max. dia. in.(mm): 1/16” (1.66)

Weight lbs (kg):
2.86 (1.3) Polypropylene
3.88 (1.76) PVDF
3.52 (1.60) Acetal

Maximum dry suction lift ft(m): 15 (4.6)

Sound Level: 70 PSI    60 Cycles/Min    62.3 db(A)

Muffler: Integral, Included

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: 1/4" Non-Metallic Dosing Pump PX01X-XXX-XXX
