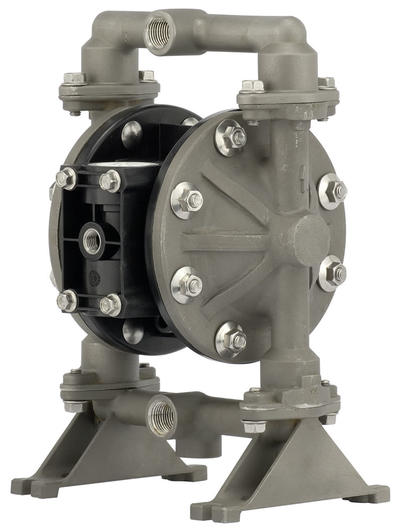

1/2" Metallic PD05X-XXS-XXX-B

Features

  • ARO has the world's best selling 1/2" ported diaphragm pump!!
  • Designed to meet your OEM application needs!!
  • Manufactured for complete corrosion resistance - constructed with polypropylene or aluminum center body, standard stainless steel fasteners, and your choice of anodized aluminum or stainless steel casing materials
  • Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • Reliability - ARO's patented "Unbalanced" air valve ensures no-stall operation
  • Versatility - Compact, heavy duty design enables usage in versatile locations including limited space
  • Environmentally Sound - Bolted construction for leak-free fluid handling
  • Serviceability - Ease of service through modular design

Accessories

  • 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5' section of hose
  • 637438 Ported Exhaust Kit
  • 93110 Air Motor Muffler
  • 76763 Wall Mount Bracket
  • 67165-X Cycle Actuation Kit
  • 637428 Air Section Service Kit
  • 637427-XX Fluid Section Service Kit

Diaphragm Materials

  • Santoprene
  • PTFE (PTFE) w/ Santoprene backer
  • Hytrel
  • Polyurethane
  • Nitrile
  • Viton

Pump Casing Materials

  • Aluminum
  • Stainless Steel

Ratio: 1:1

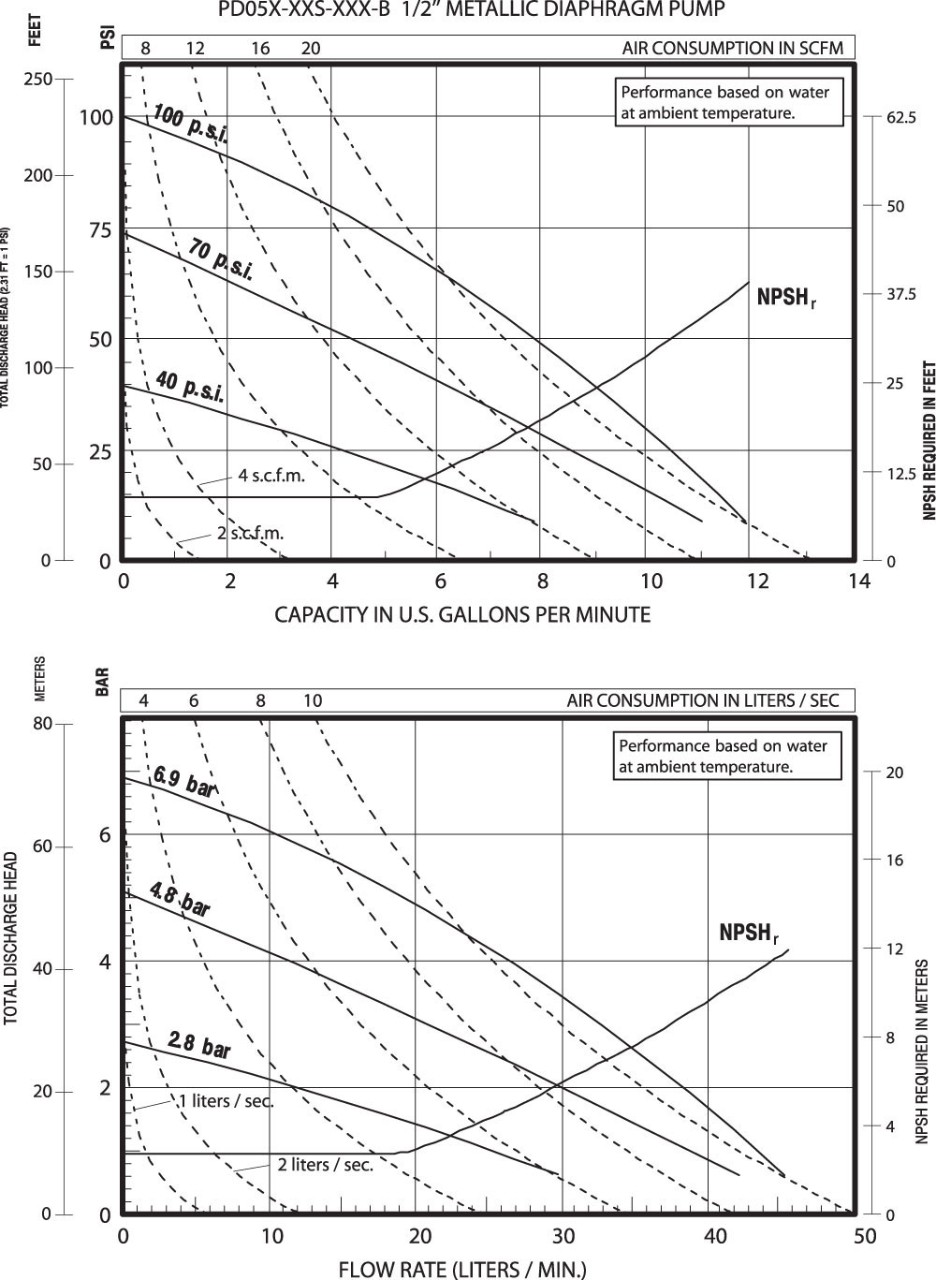

Maximum Flow
(ball) 13 g.p.m. (49.2 l.p.m.)
(duckbill) 10 g.p.m. (37.9 l.p.m.)

Displacement per cycle:
(ball) 0.04 g.p.m. (0.15 l.p.m.)
(duckbill) 0.032 g.p.m. (0.12 l.p.m.)

Air Inlet:  (Female) 1/4 - 18 N.P.T.F. - 1

Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1

Max. operating pressure: 100 psi (6.9 bar)

Suspended solids max. dia.:
(ball) 3/32” (2.4-mm)
(duckbill) fibers

Weight:  lbs (kg)
Polypropylene 7.2 (3.3)
Groundable Acetal 8.8 (4.0)
Kynar PVDF 9.5 (4.3)
Maximum dry suction lift ft(m) : 15 (4.6)
Sound Level: 70 PSI    60 Cycles/Min    71.1 db(A)

Muffler: Integral, Included

ENGINEERING OPERATION & MAINTENANCE MANUAL
