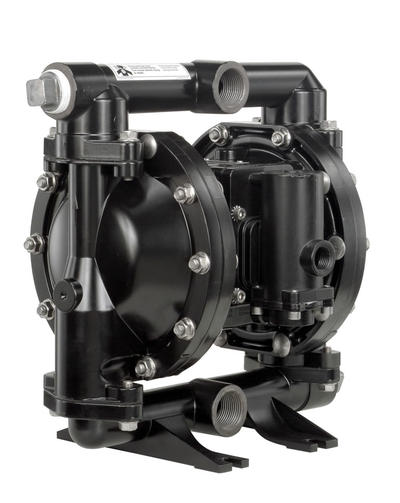

1" EXP Metallic PX10X-XXX-XXX

ARO EXP 1” metallic diaphragm pumps achieve flow rates of up to 52.2 GPM (197.6 LPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Industrial, Chemical and Petrochemical markets.

Available with Long-life PTFE diaphragms.

Features

Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation

Versatility - Broad range in materials of construction for optimum fluid compatibility

Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking

Serviceability - Easier service through modular design

Accessories

  • 66073-2 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67237 Diaphragm Failure Detection (DFD)
  • 67350 Cycle Counter Kit
  • 637397 Air Section Service Kit
  • 637401-XX Fluid Section Service Kit

Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C

Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • PTFE w/ Santoprene backer
  • Viton

Ratio: 1:1

Maximum GPM (LPM):  52 (197)

Displacement per cycle Gallons (Liters): 0.232 (0.88)

Air Inlet (Female):  1/4 - 18 N.P.T.

Fluid Inlet/Outlet: 1 - 11-1/2 N.P.T.F.-1, Rp1(1-11 BSP)

Max. operating pressure psi (bar): 120 (8.3)

Suspended solids max. dia. in. (mm): 1/8” (3.3)

Weight lbs (kg):
PX10R-XAX-XXX 20.7 (9.4)
PX10R-XCX-XXX 35.2 (16.0)
PX10R-XHX-XXX 39.6 (18.0)
PX10R-XSX-XXX 38.2 (17.3)

Note:
Add 4.65 lbs (2.11 kg) for aluminum air motor
Add 11.09 lbs (5.03 kg) for stainless steel air motor

Maximum dry suction lift ft(m): 19 (5.7)

Sound Level: 70 PSI     60 Cycles/Min 80.6 db(A)

Muffler Included:  93110


ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: 1" EXP Metallic PX10X-XXX-XXX
